Drying

Dryer installed separately from the drying hopper for installation on board the machine with the highest energy saving: more than 40 %.

Dryer installed on the drying hopper to safe floor space with the highest energy saving: more than 40 %.

In case of central conveying of dried materials the Vismec Dryfeed provides dry air to the conveying process to avoid that the material can pick up humidity from the ambient during the transfer.

A dedicated drying system for conveying also avoids the use of dry air from a material drying process.

The Vismec Dryfeed system can be also installed on a third party conveying system.

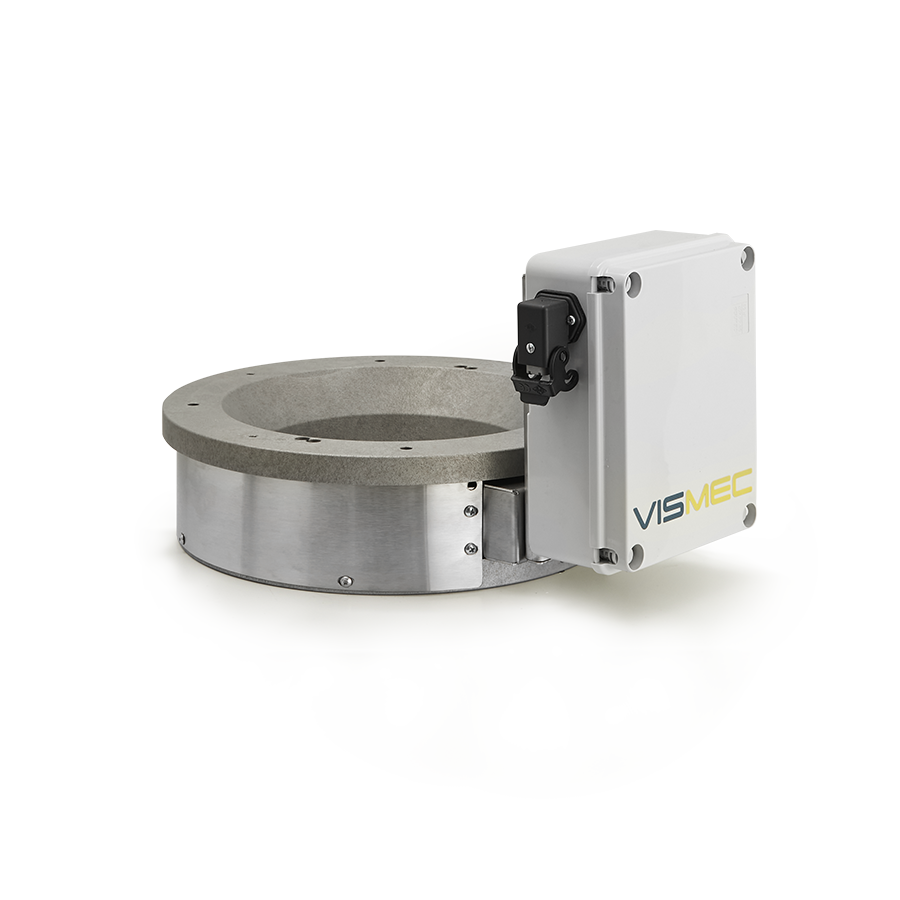

The Vismec HALO is a weighing ring installed on the top of the drying hopper to measure in real-time the throughput in kg/h.

The OILTRAP is used in presence of those materials that during the dehumidifing cycle release oily substances.

Through its use is possible to separate the oil from the air output from the hopper, ensuring an effective drying and preventing damages for the dryer.

For larger drying systems and throughputs a standard side channel blower with cyclone filter can be integrated instead of the brushless single phase blower.

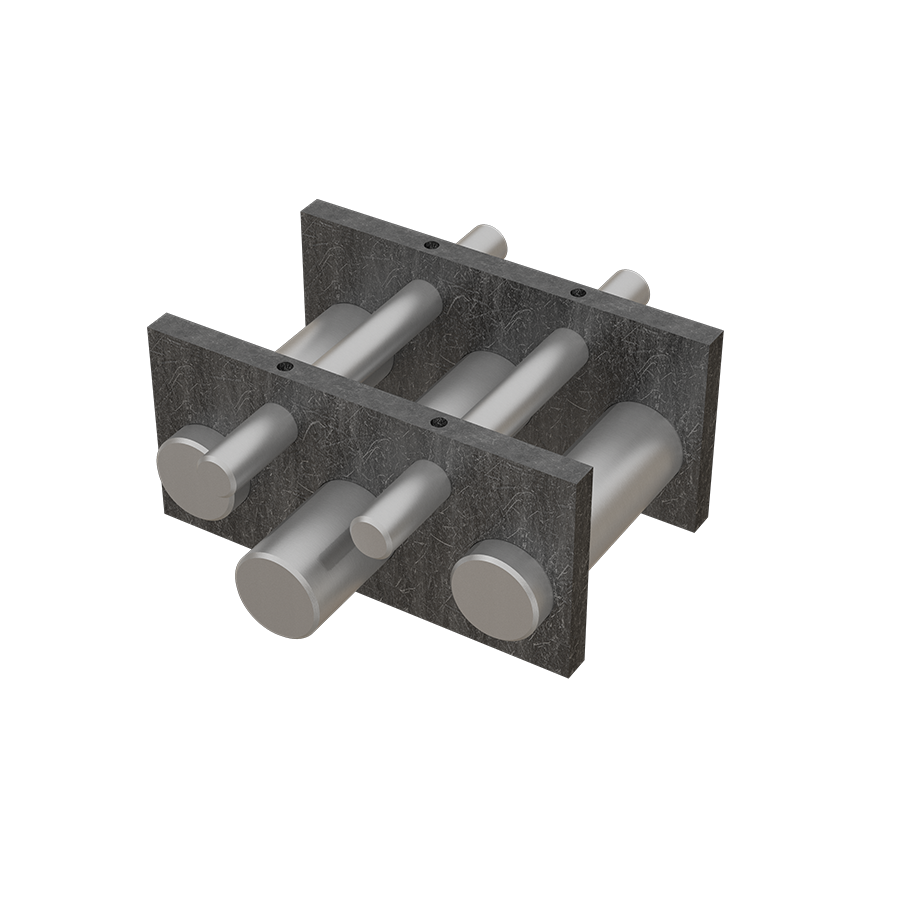

The magnetic separator is available as option and is positioned inside the receiver cone to eliminate ferrous materials from the plastic granules.

Portable Dew Point Meter.
